100G DAC
Compliant with SFF- 8665
Up to 28.3125Gbps data rate per channel
Up to 5m transmission
Operating temperature: 0~70℃
Single 3.3V power supply
RoHS compliant
Cost-effective copper solution
Lowest total system power solution
Lowest total system EMI solution
Optimized design for Signal Integrity
Up to 28.3125Gbps data rate per channel
Up to 5m transmission
Operating temperature: 0~70℃
Single 3.3V power supply
RoHS compliant
Cost-effective copper solution
Lowest total system power solution
Lowest total system EMI solution
Optimized design for Signal Integrity
PRODUCT DEATAILS
| Vendor Name | III-V | Form Type | QSFP28 |
| Data Rate | 100G | Wavelength | -- |
| Distance | 1M-5M | Optical Interface | N/A |
| Media Type | -- | DDM Support | Support |
| Commercial Temperature Range |
0~70℃ |
Industrial Temperature Range |
-40~85℃ |
| MTBF | 1,500,000 HOURS | Certificates | CE,FCC,ROHS,REACH |
| HS CODE | 8517706000 | Warranty | 3 Years |
100G QSFP28 TO QSFP28,100G QSFP28 TO 4 * 25G SFP28 DIRECT ATTACHED CABLE
|
Part Number |
Product Type | Rate | Media Type | Wavelength | Length | Connector | Commercial Temp. | Industrial Temp. | Optional |
| 35-100G-DAC-1M | QSFP28 | 100G | -- |
-- |
1M | -- |
0~70℃ |
-40~85℃ |
DDM |
| 35-100G-DAC-3M | QSFP28 |
100G |
-- | -- | 3M |
-- |
0~70℃ |
-40~85℃ |
DDM |
| 35-100G-DAC-5M | QSFP28 |
100G |
-- |
-- |
5M | -- |
0~70℃ |
-40~85℃ |
DDM |

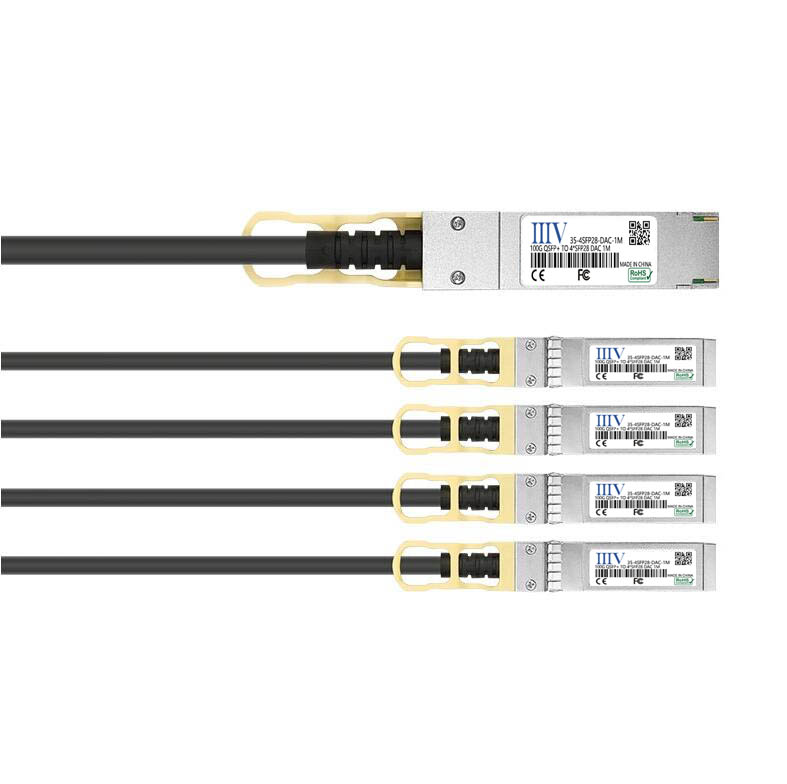

| 35-100G-4SFP28+DAC-1M | QSFP28 |
100G |
-- |
-- |
1M |
-- |
0~70℃ |
-40~85℃ |
DDM |
| 35-100G-4SFP28+DAC-5M | QSFP28 |
100G |
-- | -- | 5M | -- |
0~70℃ |
-40~85℃ |
DDM |
Date Center
Fiber Channel
Telecom
Switches And Routers Application
Fiber Channel
Telecom
Switches And Routers Application
