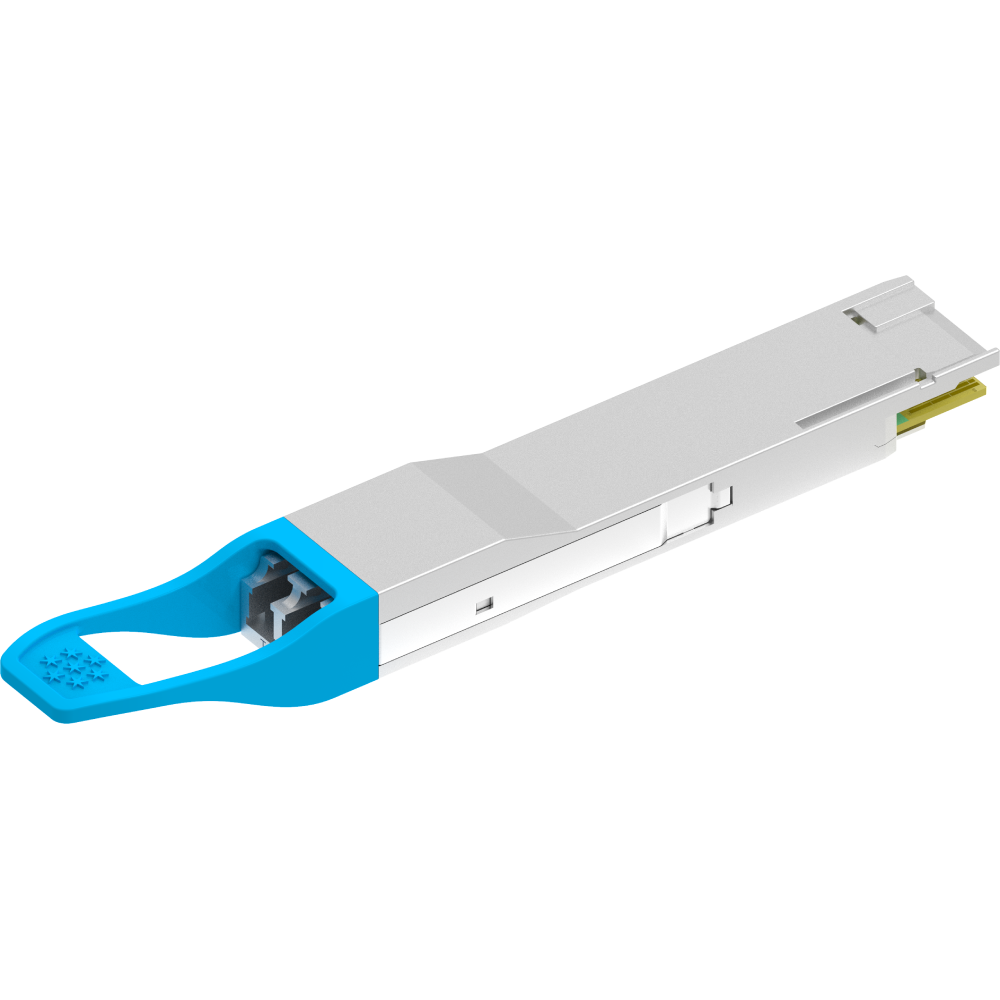

400G QSFP-DD ER8
QSFP-DD MSA Compliant
Compliant To 400G ER8 Spefification In 100G Lambda MSA
8*53.125GB/S PAM4 Electrical Interface
4 CWDM Lanes MUX/DEMUX Design
Maximun Power Consumption Is 12W
LC Duplex Connector
Up To 40km Transmission On SMF
Operationg Case Temp. : 0~70℃
Single 3.3V Power Supply
Rohs-6 Compliant
Compliant With CE,FCC,REACH
Compliant To 400G ER8 Spefification In 100G Lambda MSA
8*53.125GB/S PAM4 Electrical Interface
4 CWDM Lanes MUX/DEMUX Design
Maximun Power Consumption Is 12W
LC Duplex Connector
Up To 40km Transmission On SMF
Operationg Case Temp. : 0~70℃
Single 3.3V Power Supply
Rohs-6 Compliant
Compliant With CE,FCC,REACH
PRODUCT DEATAILS
| Vendor Name | III-V | Form Type | QSFP-DD |
| Data Rate | 400G | Wavelength | 1310NM |
| Distance | 40KM | Optical Interface | LC |
| Media Type | SM | DDM Support | Supported |
| Commercial Temperature Range |
0~70℃ |
Industrial Temperature Range |
-40~85℃ |
| MTBF | 1,500,000 HOURS | Certificates | CE,FCC,ROHS,REACH |
| HS CODE | 8517706000 | Warranty | 3 Years |
400G QSFP-DD ER8 TRANSCEIVER
|
Part Number |
Product Type | Rate | Media Type | Wavelength | Distance | Connector | Commercial Temp. | Industrial Temp. | Optional |
|
35-QSFP-DD-ER8 |
QSFP-DD | 400G | SM |
1310NM |
40KM | LC |
0~70℃ |
-40~85℃ |
DDM |
400G Ethernet
Date Center Application
Enterprise Networking
Date Center Application
Enterprise Networking
