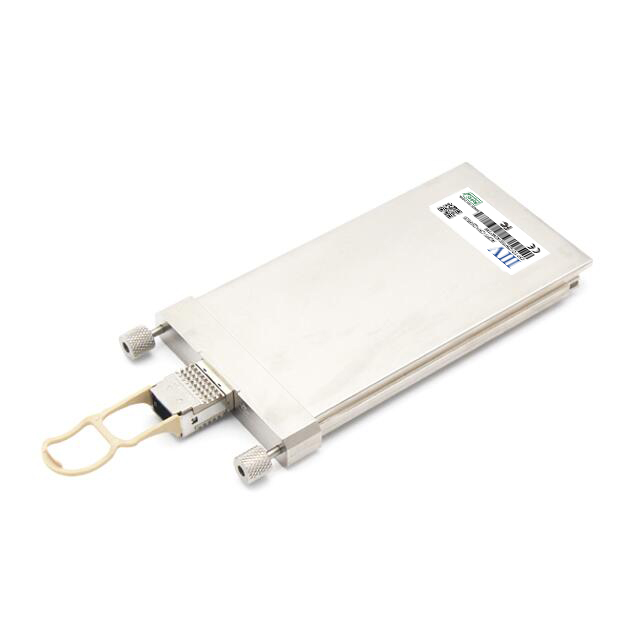

100G MODULE ADAPTER
Compliant with 100G
Support line rates from 103.125 Gbps to 111.81 Gbps
Single 3.3 V power supply
Case operating temperature range:0°C to 70°C
Industrial temp: -40°C to 85°C
l Power dissipation < 6W
Complaint with CE,FCC,ROHS REACH
Support line rates from 103.125 Gbps to 111.81 Gbps
Single 3.3 V power supply
Case operating temperature range:0°C to 70°C
Industrial temp: -40°C to 85°C
l Power dissipation < 6W
Complaint with CE,FCC,ROHS REACH
PRODUCT DEATAILS
| Vendor Name | III-V | Form Type | CFP TO QSFP28,CFP2 TO QSFP28 |
| Data Rate | 100G | Wavelength | ----- |
| Distance | ----- | Optical Interface | ----- |
| Media Type | ----- | DDM Support | ----- |
| Commercial Temperature Range |
0~70℃ |
Industrial Temperature Range |
-40~85℃ |
| MTBF | 1,500,000 HOURS | Certificates | CE,FCC,ROHS,REACH |
| HS CODE | 8517706000 | Warranty | 3 Years |
100G ADAPTER TRANSCEIVER
|
Part Number |
Product Type | Rate | Media Type | Wavelength | Distance | Connector | Commercial Temp. | Industrial Temp. | Optional |
|
ADPT-CFP-QSFP28 |
CFP | 100G | -- |
-- |
-- | -- |
0~70℃ |
-40~85℃ |
DDM |
|
ADPT-CFP2-QSFP28 |
CFP2 |
100G |
-- | -- | -- |
-- |
0~70℃ |
-40~85℃ |
DDM |
