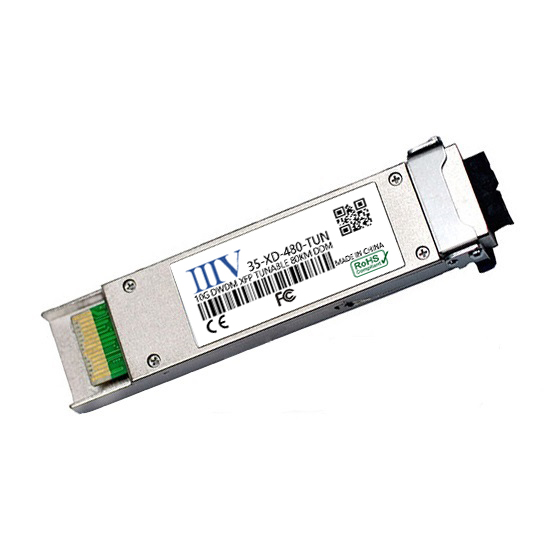

10G TUNABLE DWDM XFP
Supports 9.95 to 11.3Gb/s bit rates
Hot-Pluggable
Duplex LC connector
50GHz ITU Grid, C Band
T-DWDM EML transmitter, APD photo-detector
SMF links up to 80km
Compliant with SFF 8472 digital diagnostic monitoring interface
Power Supply :+3.3V
Power consumption<1.5W
Temperature Range: 0~ 70°C
CE,FCC,RoHS compliant
Hot-Pluggable
Duplex LC connector
50GHz ITU Grid, C Band
T-DWDM EML transmitter, APD photo-detector
SMF links up to 80km
Compliant with SFF 8472 digital diagnostic monitoring interface
Power Supply :+3.3V
Power consumption<1.5W
Temperature Range: 0~ 70°C
CE,FCC,RoHS compliant
PRODUCT DEATAILS
| Vendor Name | III-V | Form Type | TUNABLE DWDM XFP |
| Data Rate | 10G | Wavelength | CH17-CH61 |
| Distance | 80KM | Optical Interface | LC Connector |
| Media Type | T-DWDM | DDM Support | Support |
| Commercial Temperature Range |
0~70℃ |
Industrial Temperature Range |
-40~85℃ |
| MTBF | 1,500,000 HOURS | Certificates | CE,FCC,ROHS,REACH |
| HS CODE | 8517706000 | Warranty | 3 Years |
10G TUNABLE DWDM XFP TRANSCEIVER
|
Part Number |
Product Type | Rate | Media Type | Wavelength | Distance | Connector | Commercial Temp. | Industrial Temp. | Optional |
|
35-XD-4XX80-T |
TUNABLE XFP | 10G | T-DWDM |
CH17~CH61 |
80KM | LC |
0~70℃ |
-40~85℃ |
DDM |
Ethernet
Fiber channel
Telecom
Fiber channel
Telecom
